Display

• Display Type: 7" LCD
• Resolution: 1280 x 800 pixel
• Touch Type: PCAP (10 points)

System

• CPU: Intel® Atom™ x5-Z8550 Processor (Cherry Trail Type 4)
• Memory: LPDDR3 1600MHz, 4GB
• Storage: Single eMMC 4.5, 64GB
• Operating System: Windows 10 64bit (optional)

Communications

• Wi-Fi: 802.11 a/b/g/n/ac
• Bluetooth: v4.0
• GPS: GPS & GLONASS
• NFC: NXP NPC100, ISO14443 Type A, Type B, PC/SC (windows driver support)
• Mobile Data: 3G/LTE (optional module)

Input/Output & Sensors

• Sensors: E-compass, G-sensor, Gyro, Ambient Light sensor

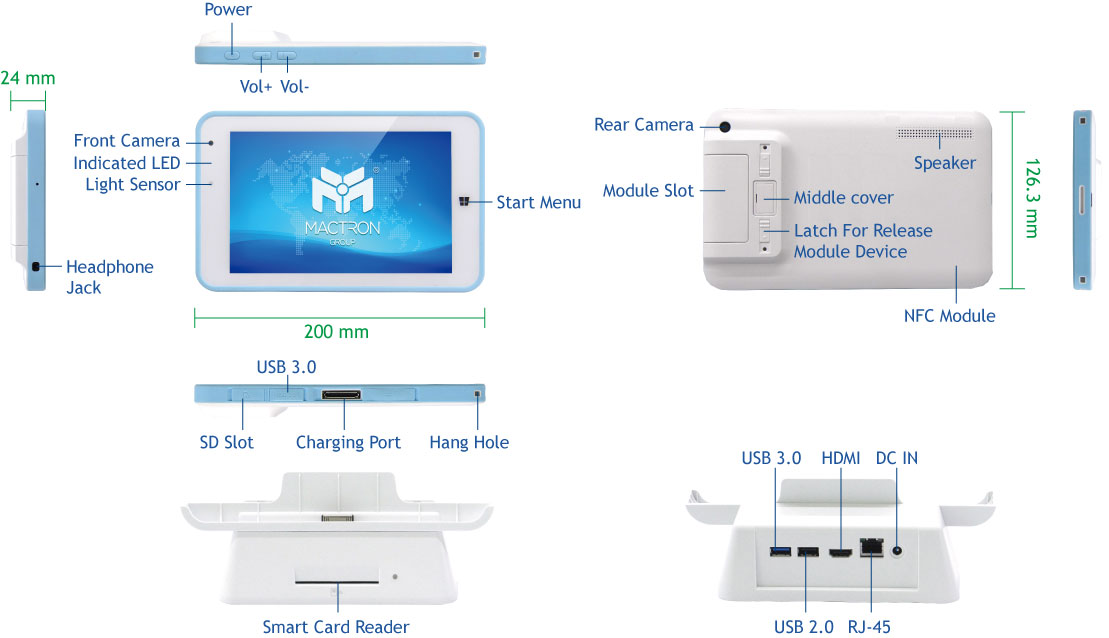

• I/O Ports: 1 x Docking Port (with AC-IN, HDMI, USB), 1 x Micro SD card slot, 1 x Mic/Headphone jack combo, 1 x micro USB port (OTG / USB3.0 micro Type B)
• Control Buttons: Power, Volume Up, Volume Down

Camera & Audio

• Front Camera: 2.0M
• Rear Camera: 8.0M
• Speaker: 2x Speakers, 1W x 8 Ohm
• Microphone: 1x DMIC

Power & Protection

• Battery: Li-polymer 4100 mAh / 15.17Wh
• Ingress Protection: IP54

Environment

• Operating Temperature: 0°C ~ 40°C
• Operating Humidity (RH): 10% - 95% non-condensing
• Storage Temperature: -20°C ~ 60°C
• Storage Humidity (RH): 5% - 95%
• Vibration: 4Gs Peak, 5Hz to 2kHz, 1 Hour Duration per axis
• Drop Test: 0.8m / 2.7ft. Drop to steel Surface, 1 drop per 6 sides

Physical

• Dimensions: 200mm x 125mm x 23.5mm
• Weight: 490g
• Certifications: FCC Part 15 Class B, CE, IEC60601

Options

• Optional Devices: 1D/2D Barcode Scanner, 3G / LTE Module, Smart Card Reader (contact), MSR, Ethernet Giga LAN RJ45 Port
• Docking: Optional

‍
