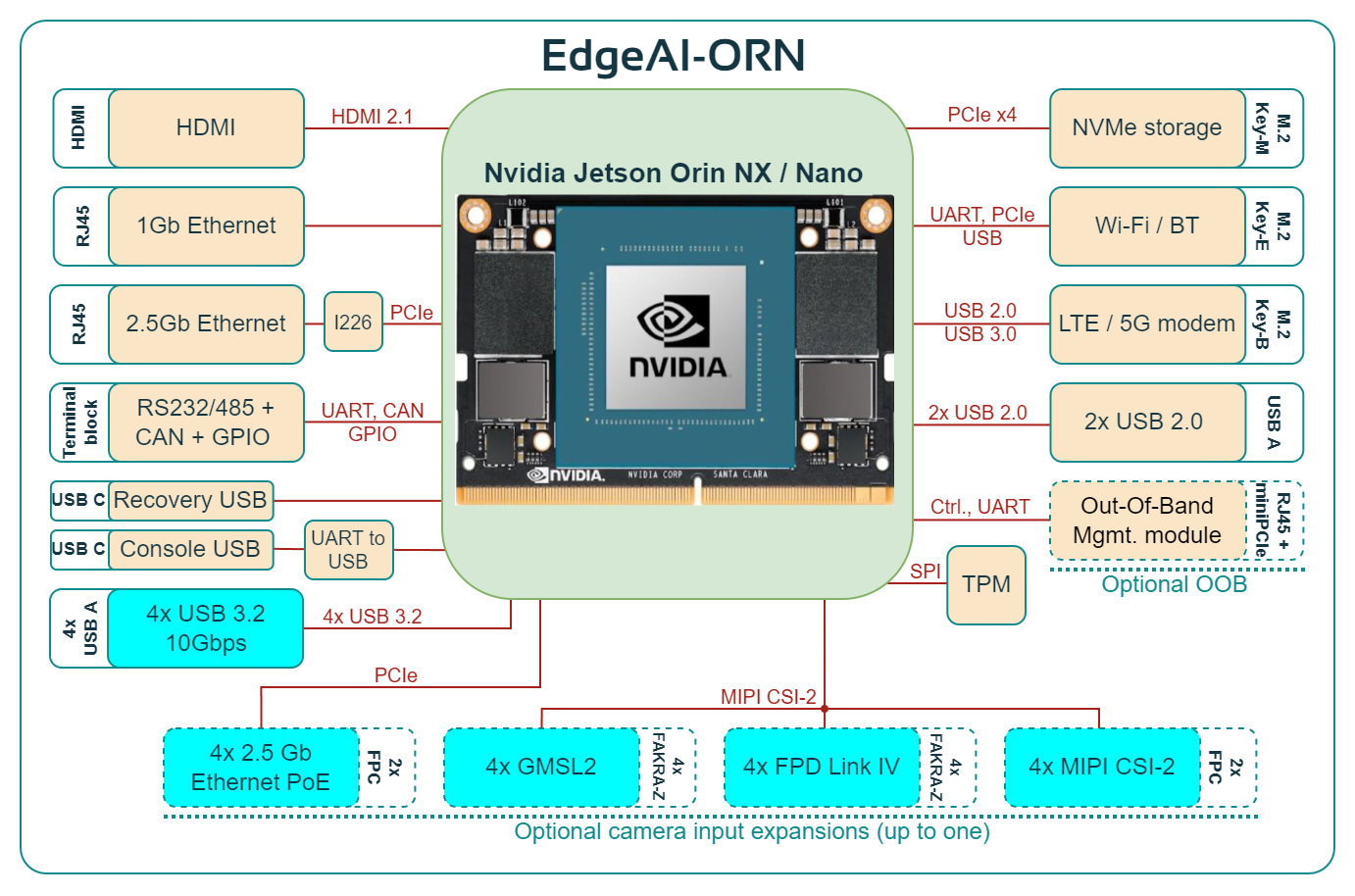

Multiple camera interfaces

EdgeAI-ORN is engineered to be a perfect match to every enviroment, for high-throughput camera input:

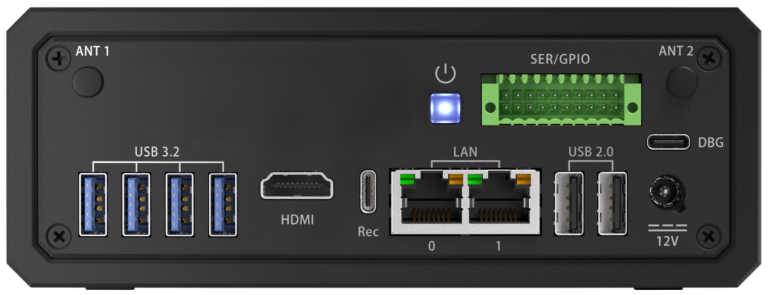

• USB 3.2 Gen. 2:
  EdgeAI-ORN includes four USB 3.2 ports by default, allowing for the connection of up to four USB cameras with a data transfer rate of up to 10Gbps each.

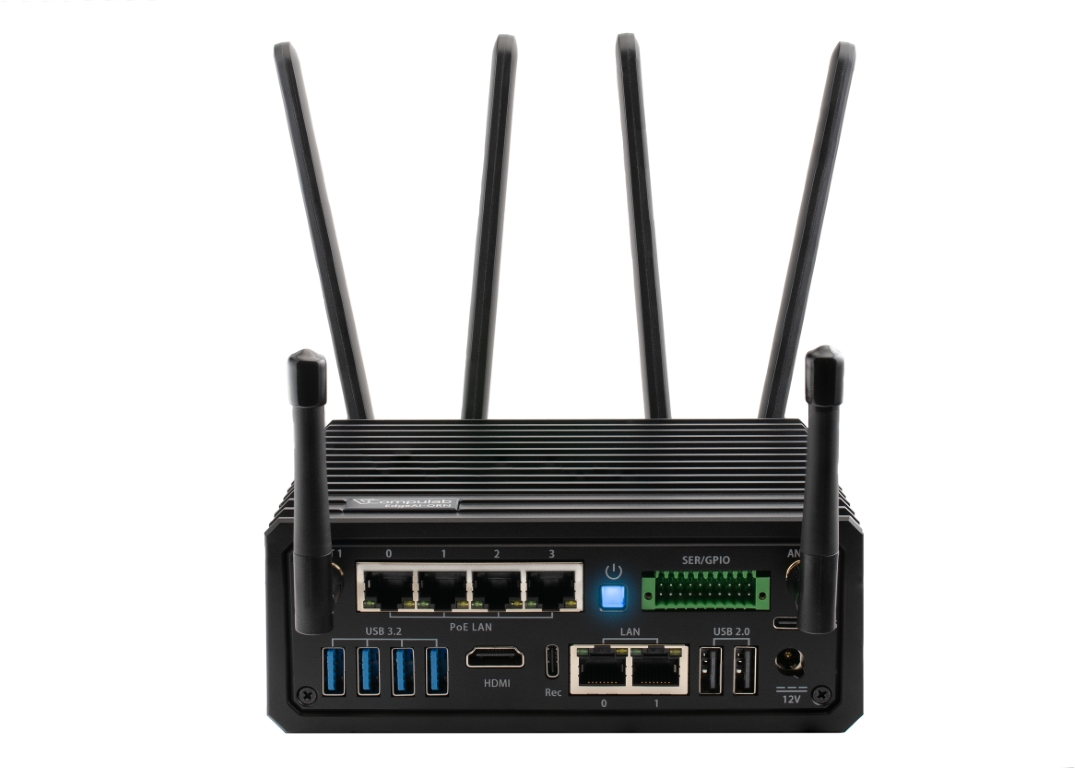

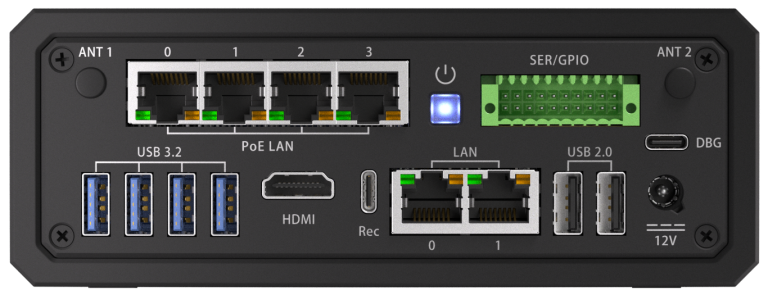

• 2.5 GbE with PoE:
  For connection of up to 4 high-throughput PoE cameras with 15W per port.

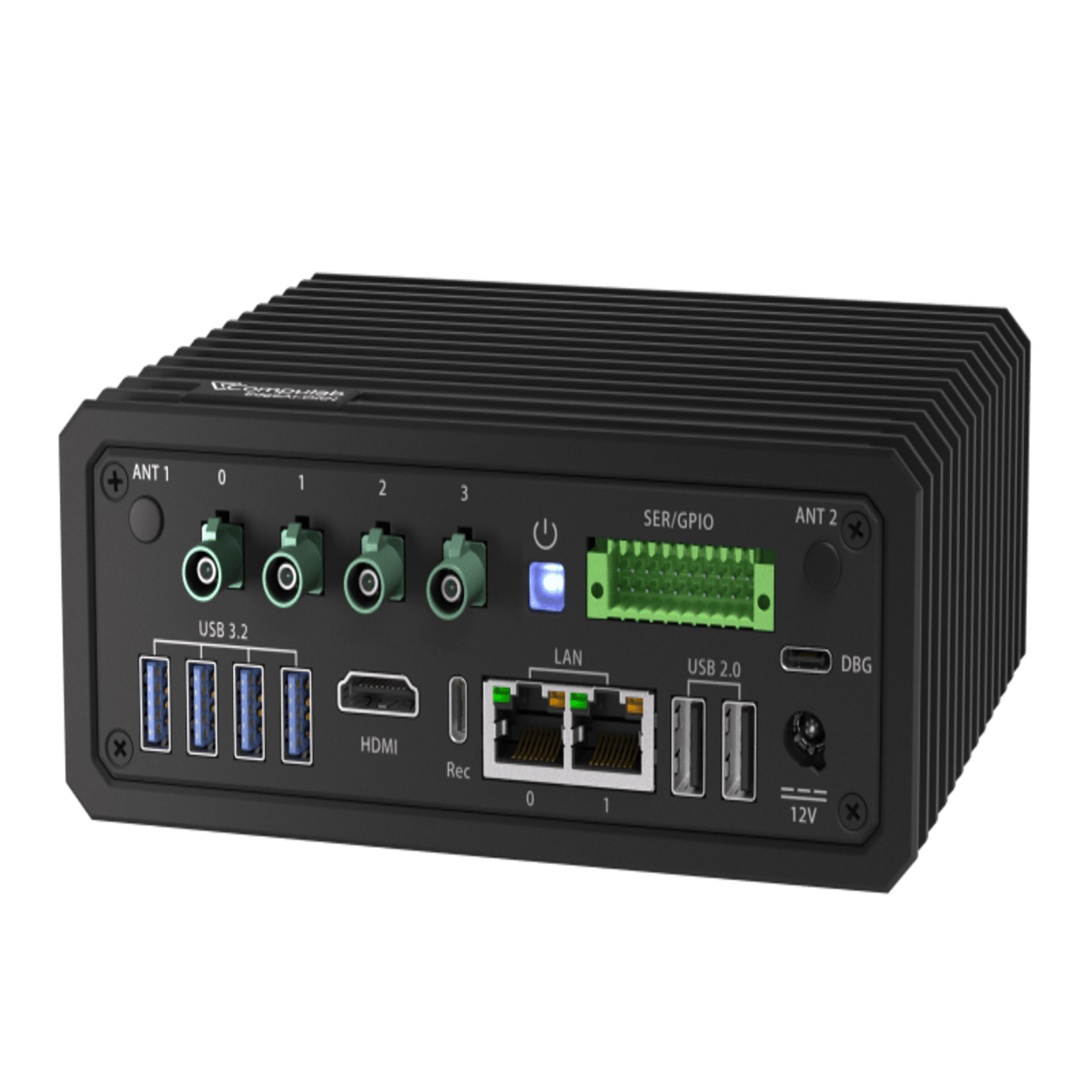

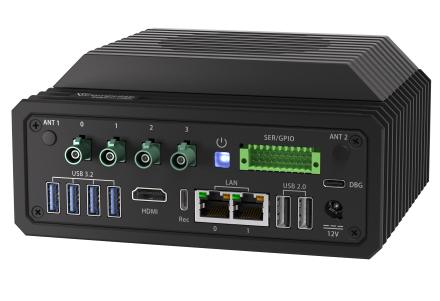

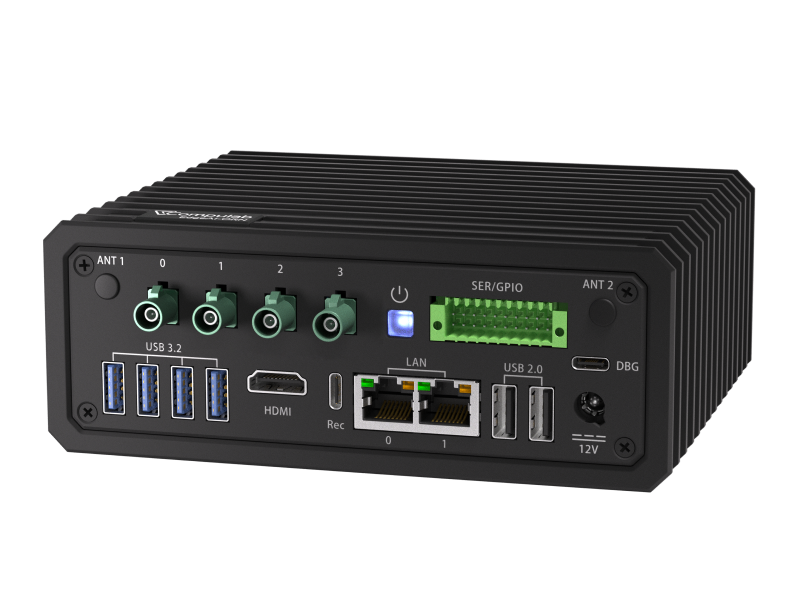

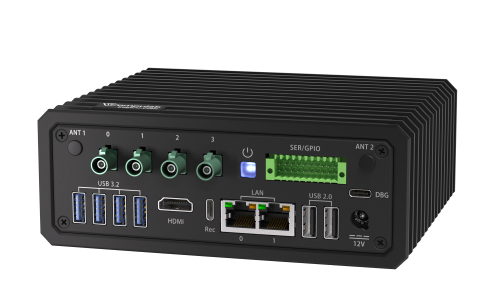

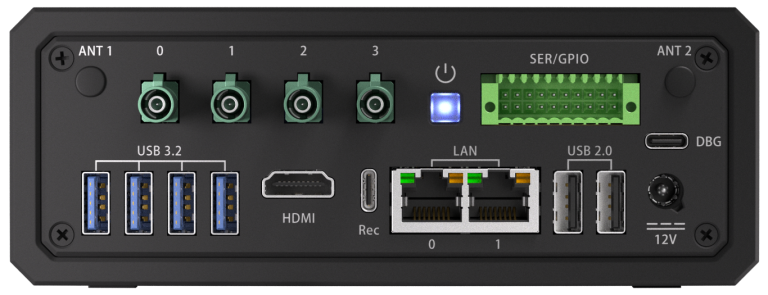

• GMSL2:
  4-port deserializer with PoC for up to four GMSL2 cameras.
• FPD Link IV:
  4-port deserializer with PoC for up to four FPD Link cameras.
• MIPI CSI-2:
  4-lane MIPI CSI-2 interface with a standard Jetson eval. board pin-out for up to four cameras.

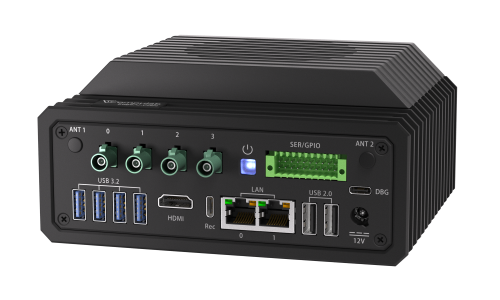

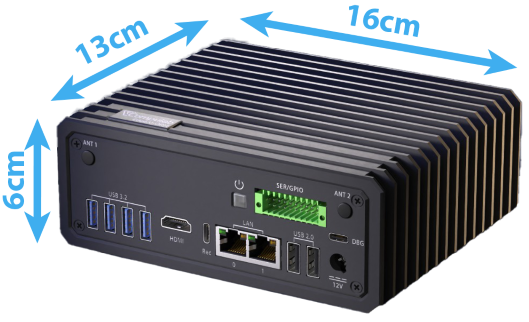

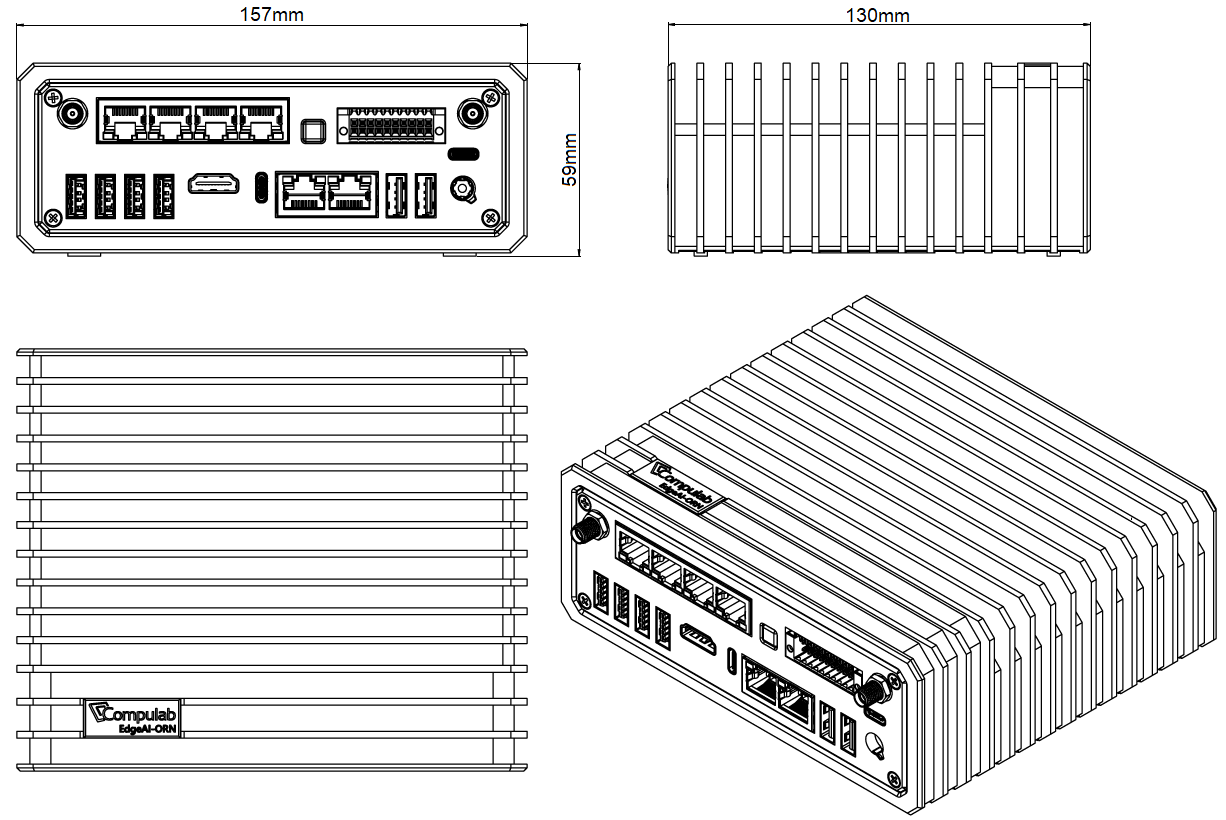

Compact form, exceptional capability

Despite its powerful AI engine and rich I/O options, EdgeAI‑ORN is designed in a remarkably small footprint. It delivers enterprise‑grade performance and advanced thermal engineering in a size that fits seamlessly into space‑constrained installations.

Built-in industrial interfaces

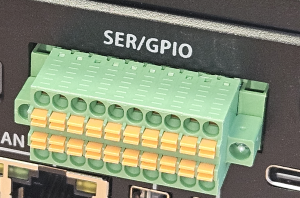

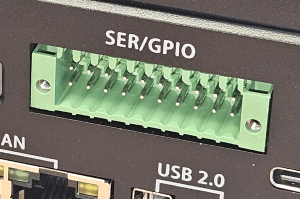

Using an industry-standard terminal block, EdgeAI-ORN can be interfaced using isolated interfaces:

• 2 x input + 2 x output GPIO signals
• RS-232 or RS-485/422 full/half duplex
• CAN bus with CAN FD capability

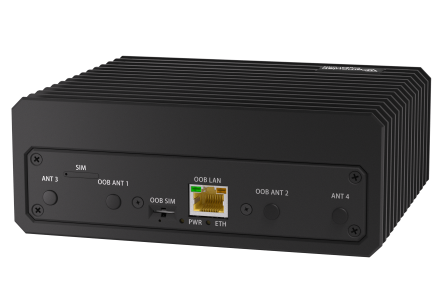

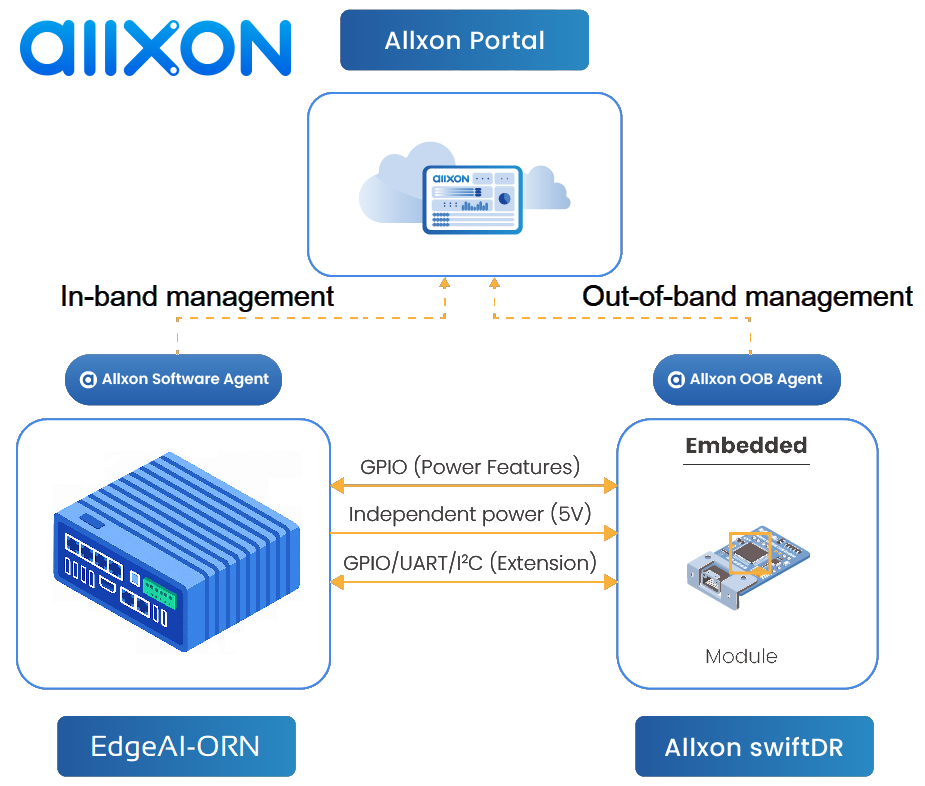

Allxon OOB management – Enhancing reliability and operational continuity

EdgeAI-ORN can be equipped with the Allxon OOB Enabler-Bolt, an out‑of‑band management module, as a powerful option that elevates reliability and operational control.

Through a dedicated management channel, the Allxon OOB Enabler-Bolt module enables remote power cycling, system recovery, and diagnostics even when the main operating system is unresponsive. This means:

• Swift recovery during critical failures without needing on‑site intervention
• Reduced downtime and operational costs thanks to proactive monitoring
• Enhanced security and compliance by supporting remote updates and controlled access
• Improved sustainability by cutting down on maintenance trips and energy use

By integrating this proven OOB solution directly into the EdgeAI‑ORN platform, you gain a single, unified device that combines advanced AI computing with best‑in‑class remote management capabilities significantly strengthening your overall edge deployment strategy.

Enhanced heat dissipation with active air flow

For applications that push the Jetson module to its full AI capability (up to 40W), EdgeAI‑ORN supports an optional external fan. This add‑on significantly enhances heat dissipation, ensuring stable operation and sustained peak performance even under the most demanding workloads.

Passive heat dissipation

EdgeAI-ORN employs a full-coverage heatsink design that extends across the top and sides. This expansive thermal interface delivers outstanding heat dissipation, enabling quiet, maintenance‑free operation without compromising AI performance.

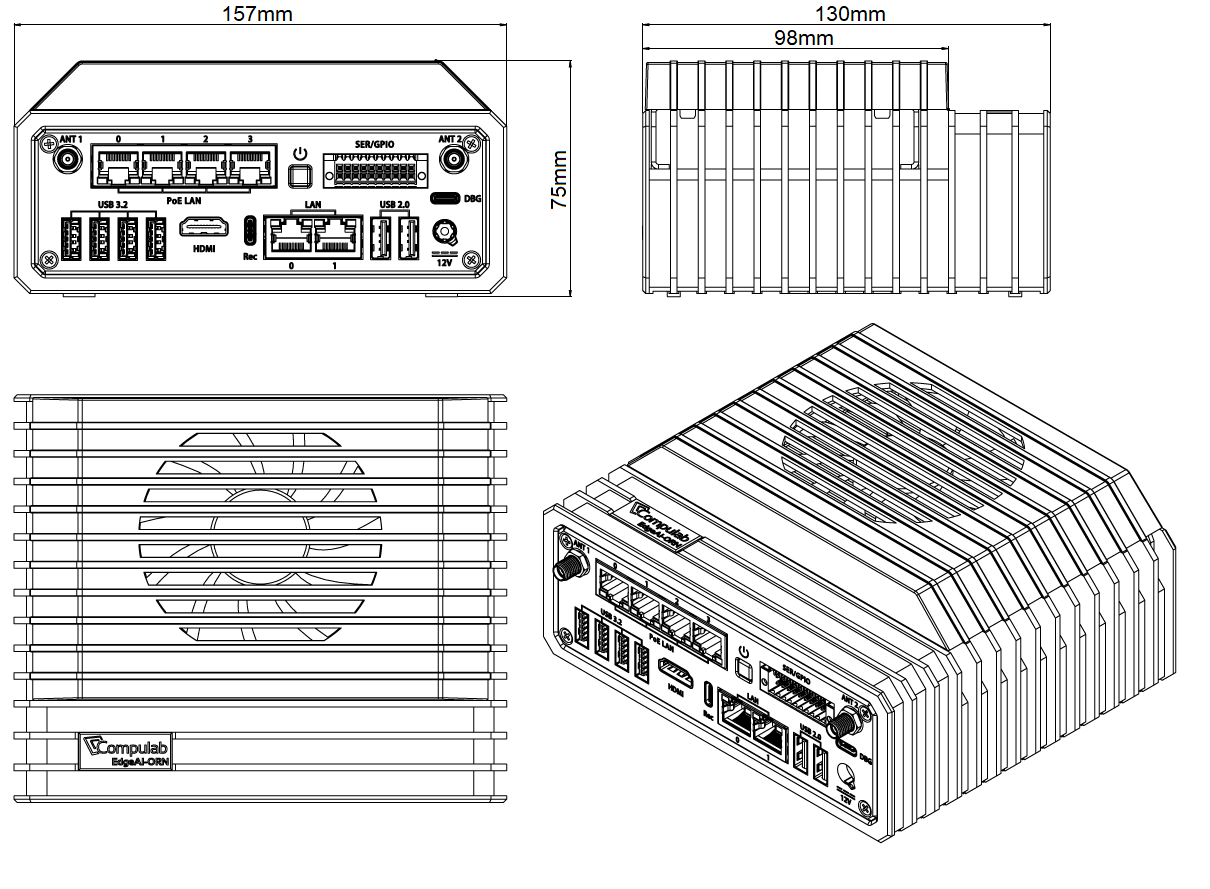

Active heat dissipation

Designed with flexibility in mind, EdgeAI‑ORN offers an active cooling configuration featuring an externally mounted fan. This enhanced thermal solution unlocks the module’s full potential – up to 40W of AI compute power – while ensuring thermal stability in demanding industrial and edge environments.

The added value

Long-term availability with an extra-long warranty

C-LAB’s edge computers are guaranteed to be available for at least as long as the platform is available.

With this longevity you can count on us for the long run.

Proud of our products we provide a 5-year warranty as standard, reinforcing our commitment to guaranteeing quality and customer satisfaction over time.

Full-scale customisation

C-LAB offers a wide range of special customisation services so that computers can be shipped ready-to-use and according to customer’s needs:

• SMT-level hardware configuration
• Custom operation system imaging
• Customised BIOS menu default options
• Branding: custom splash screen, company logo, documentation, labelling and packaging
• ZTP (Zero-Touch Provisioning)

Direct engineering support

From pre-sale consultations to post-sale engineering support, direct technical assistance is provided by the product’s development engineers. This streamlined support system ensures efficient and effective resolution of technical challenges, enhancing the customer’s project design flow.

‍
