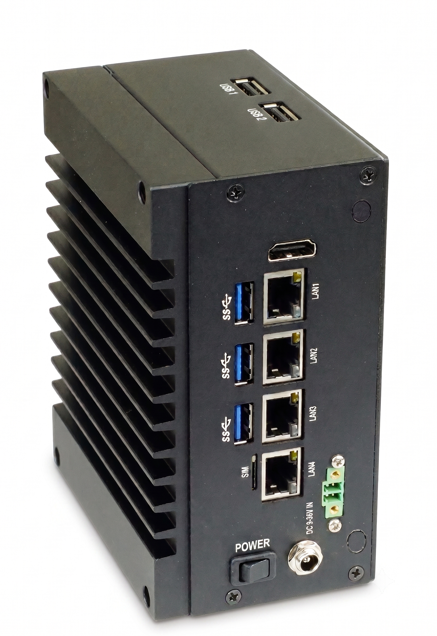

SKY 2

CPU

• Intel® 13th Gen Raptor Lake-U SoC
• Intel® Core™ i7-1365UE – 10C (2P+8E) / 12T, up to 4.9 GHz, 12MB Cache
• Intel® Core™ i5-1335UE – 10C (2P+8E) / 12T, up to 4.5 GHz, 12MB Cache

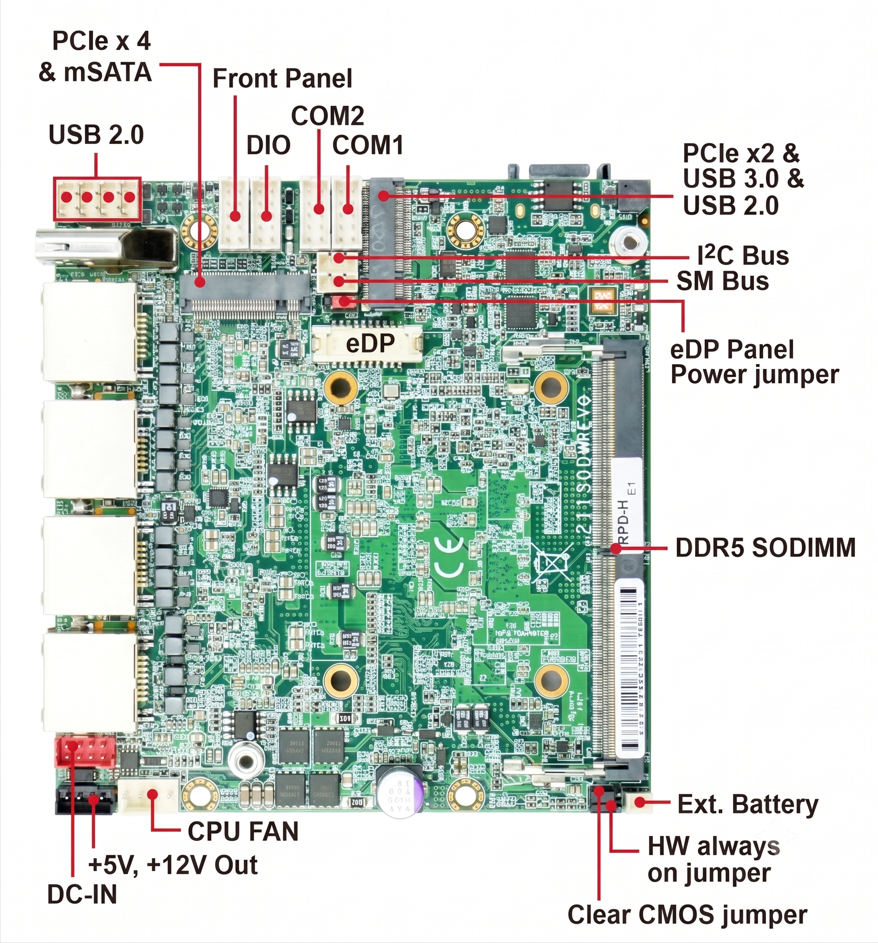

• Motherboard: 2I130DW

RAM

• 1 x DDR5 5200/4800MHz SODIMM socket, Max. 32GB

Storage

• M.2 NVMe SSD / 2.5" SATA SSD/HDD

Expansion slots

• 1 x M.2 M key 2280 (SATA / PCIe x4, NVMe)
• 1 x M.2 B key 2242/3042 (PCIe x2 / USB 3.2/2.0)
• 1 x Nano SIM slot

Networking

• 4 x Intel® 2.5GbE (I226)
• 2 x RS232 / 422 / 485 (optional)
• WiFi + Bluetooth, 4G / 5G (optional modules)

Power

• DC input: +9V~36V
• AC input: External AC-DC adapter 100 / 240V (optional)

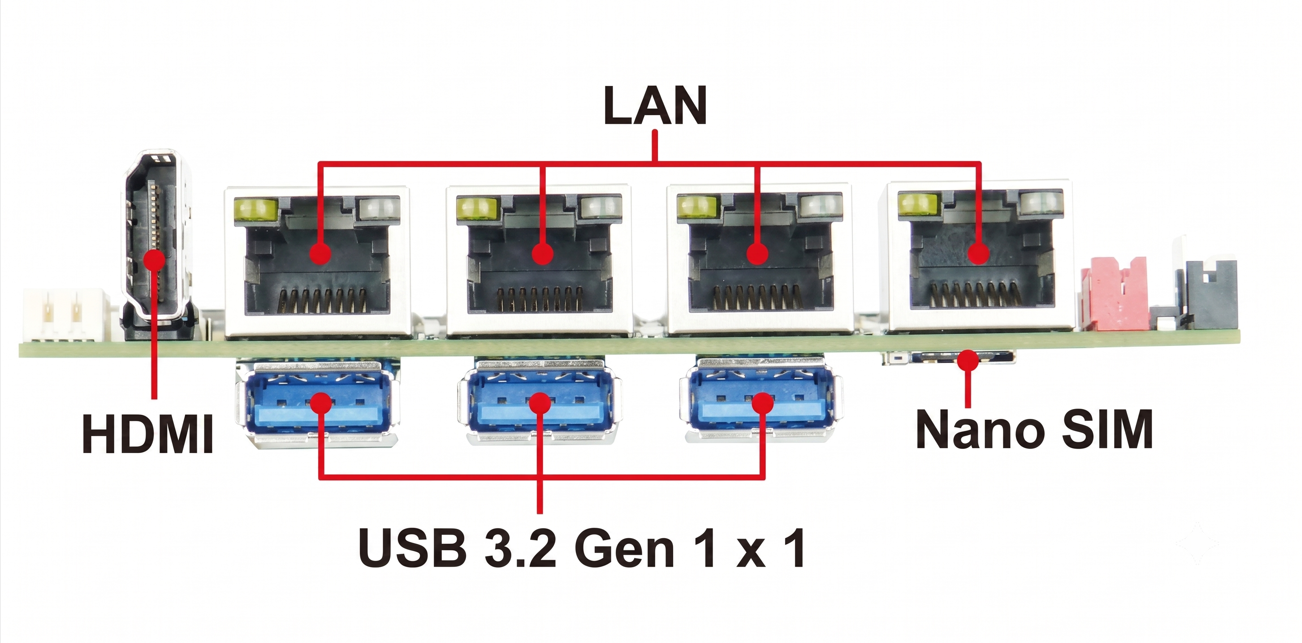

I/O

• 4 x Intel® 2.5GbE
• 3 x USB 3.2 Gen1x1 Type-A (front) + 2 x USB 2.0 (top)
• Serial ports: 2 x RS232 / 422 / 485 (optional)
• Display: 1 x HDMI
• GPIO: 4 x DI / 4 x DO (optional)

Optional Modules & Accessory

• 2 x RS232 / 422 / 485 Module, Digital I/O Module, WiFi + Bluetooth Module, 4G / 5G Module, 2 / 4-Port PoE
• M.2 NVMe Heatsink Kit (2280 / 2242), SATA Kit
• VESA 75 / DIN-Rail / Wall Mount Kit

Operating Temp.

• -40°C to +60°C (100% CPU load)
• W / Industrial SSD
• Humidity: 95% at 40°C, non-condensing

Certification

• CE / FCC Class A

OS support

• Windows® 10/11 IoT
• Ubuntu 22.04 above
• Fedora 36 above

Weight

• 1.25 kg

System Dimensions

• 141W x 111.2D x 71.9H mm

Mounting

• VESA 75 / DIN-Rail / Wall Mount

‍
