Rakia I-30 is a compact fanless embedded computer with dimensions measuring just 71.9 x 111.2 x 141 mm and weighing only 1.25 kg. It features Intel® 13th Gen Raptor Lake-U processors — Core™ i7-1365UE or i5-1335UE, 10 cores (2P+8E) / 12 threads with up to 4.9 GHz and 12MB cache — paired with a DDR5 SODIMM socket supporting up to 32GB. With no moving parts and a -40 to +60 °C operating range at 100% CPU load, it is designed for space-restricted and harsh-environment applications such as factory data collection, AIoT, edge computing and network gateway deployment.

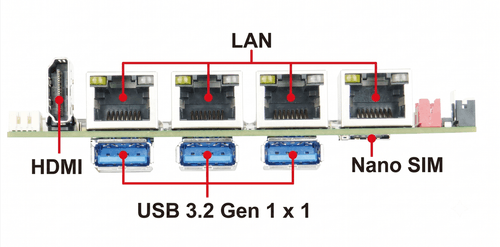

Rakia I-30 is equipped with multiple I/O, such as 4 x Intel® 2.5GbE LAN ports, 1 x HDMI, 3 x USB 3.2 Gen1x1 Type-A on the front, 2 x USB 2.0 on the top panel, and optional 2 x RS232/422/485 serial ports and 4 x DI / 4 x DO digital I/O for industrial communication and control. Storage is flexible via an M.2 M key 2280 slot (SATA / PCIe x4 NVMe) plus 2.5" SATA SSD/HDD support. In addition, by adopting an M.2 B key 2242/3042 slot with a Nano SIM socket, the Rakia I-30 can fully harness the bandwidth of WiFi 6, 4G/5G wireless communications to provide wide-area coverage and real-time data transmission for AIoT and edge gateway applications.

The attributes of wide-range 9 to 36V DC input, fanless operation and lightweight mechanical design — with VESA 75, DIN-Rail and wall mount options — also make Rakia I-30 an ideal solution for projects that require space-constrained edge computing for intelligent robotic control, smart traffic, smart medical, machine vision inspection and real-time analysis. CE / FCC Class A certified, with support for Windows 10/11 IoT, Ubuntu 22.04+ and Fedora 36+.

‍
